- Place of Origin: Beijing
- Brand Name: Jiuhong
- Model Number: ZLP630,ZLP800,ZLP1000

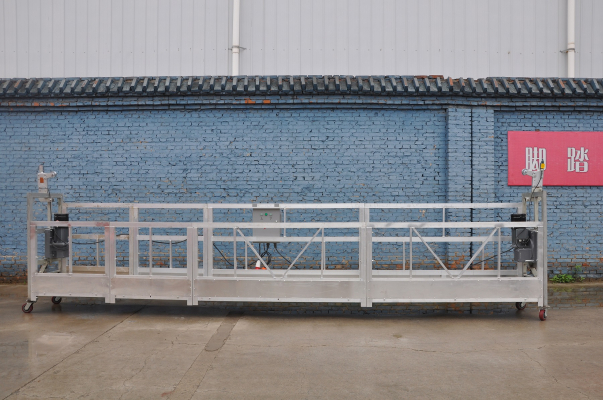

Aluminum,steel,galvanized work platform
ZLP500,ZLP630,ZLP800,ZLP1000
- Place of Origin: Beijing
- Brand Name: Jiuhong
- Model Number: ZLP630,ZLP800,ZLP1000
Name | Technical parameter | |||
Model | ZLP800 | ZLP630 | ||
800Kg | 630Kg | |||
Lifting speed | 8-10m/min | 8-10m/min | ||
Platform Dimension L×W×H(mm)Spray plastics corrosion-resistant | 7500(2.5m*3)×720×1300 | 6000(1 2 3m)×720×1300 | ||
Lifting Height | 100 m | 100 m | ||
Cable | 100 m | 100 m | ||
Steel rope (specially-made) | Ф9.1mm | Ф8.3mm | ||
Hoist | Pulling power | 7.84KN | 6.17KN | |
electric motor | model | YEJ100L-4 | YEJ90L-4 | |
Power | 1.8KW*2 | 1.5KW*2 | ||
Voltage | 380V 50Hz | 380V 50Hz | ||
Rotational speed | 1420rpm | 1420rpm | ||
Braking moment | 15Nm | 15Nm | ||
Safety lock | Permission force of impact | 30KN | 30KN | |
Locking Cable Angle | 3°~8° | 3°~8° | ||
Suspension mechanism(Galvanized ) | Front beam overhang | 1.3~1.5m | 1.3~1.5m | |
Support adjustable height | 1.44~2.14m | 1.44~2.14m | ||
Counterweight | 1000kg | 1000kg | ||
20’ft container | 8sets | 9sets |
